This product is an indoor high-voltage vacuum circuit breaker rated at 40.5kV, three-phase AC 50Hz, with a floor-mounted structure, used by industrial/mining enterprises, power plants, and substations for switching load current, overload current, and short-circuit current, and is suitable for frequent-operation applications.

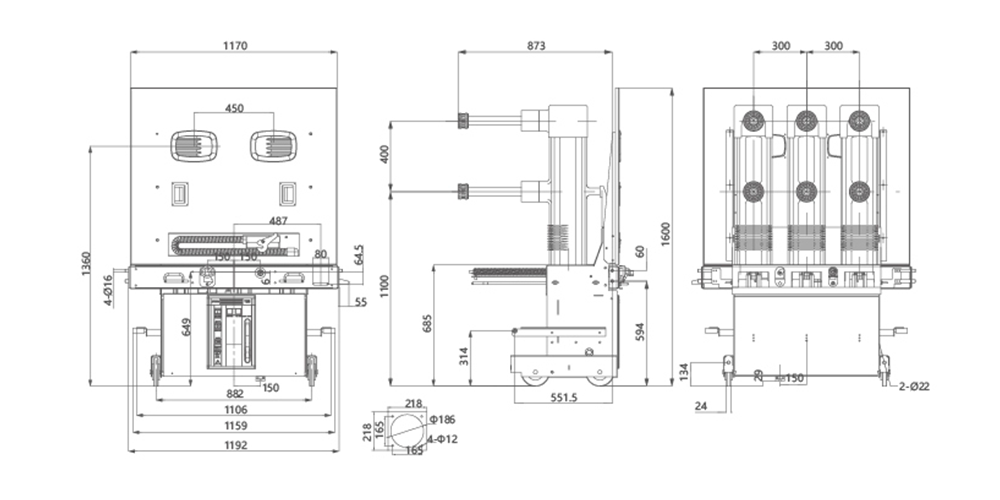

Features:
The floor-mounted structure is installed securely with a reasonable footprint, making on-site arrangement and maintenance convenient; the vacuum interrupter offers reliable breaking performance and a high insulation level, meeting the strict safety and stability requirements of high-voltage distribution systems.
Applications:
Widely used in the high-voltage distribution systems of power plants, substations, and large and medium-sized industrial/mining enterprises, undertaking circuit and equipment switching control, overload protection, and short-circuit fault clearance, serving as an important component for medium- and high-voltage floor-mounted switchgear.
| Item | Unit | Parameter | ||
| Rated Voltage | kV | 40.5 | ||
| Rated Current | A | 1250 1600 2000 | ||
| Rated Frequency | Hz | 50 | ||
| Rated Short-Circuit Breaking Current | kA | 25 | 31.5 | |
| Rated Short-Circuit Making Current (Peak) | kA | 63 | 80 | |
| 4s Rated Short-Time Withstand Current | kA | 25 | 31.5 | |
| Rated Peak Withstand Current | kA | 63 | 80 | |
| 1min Power Frequency Withstand Voltage | kV | 95 | ||
| Lightning Impulse Withstand Voltage (Peak) | kV | 185 | ||
| Rated Operating Sequence | O-0.3s-CO-180s-CO | |||
| Rated Number of Short-Circuit Breaking Operations | Times | 20 | ||
| Mechanical Life | Times | 10000 | ||
| Breaking Time | ms | ≤ 80 | ||
| Single Capacitor Bank Breaking Current | A | 630 | ||
| Back-to-Back Capacitor Bank Breaking Current | A | 400 | ||
| Rated Operating Voltage | V | -110/~110, -220/~220 | ||
