650mm-Width Withdrawable Vacuum Circuit Breaker

Home / Products / Vacuum circuit breaker / 650mm-Width Withdrawable Vacuum Circuit Breaker

VS1-12

650mm-Width Withdrawable Vacuum Circuit Breaker

This product is an indoor withdrawable high-voltage vacuum circuit breaker designed for 650mm-width metal-enclosed switchgear. It adopts a solid-insulation encapsulated-pole structure that integrates the vacuum interrupter, current-carrying circuit, and insulating supports, giving it a compact structure and reliable insulation performance, suitable for 12kV three-phase AC power systems.

Contact Us Contact Us Contact Us Product Catalog
PREV：650mm-Width Fixed-Type Vacuum Circuit Breaker NEXT：Side-Mounted Vacuum Circuit Breaker
  • Description
  • Specifications

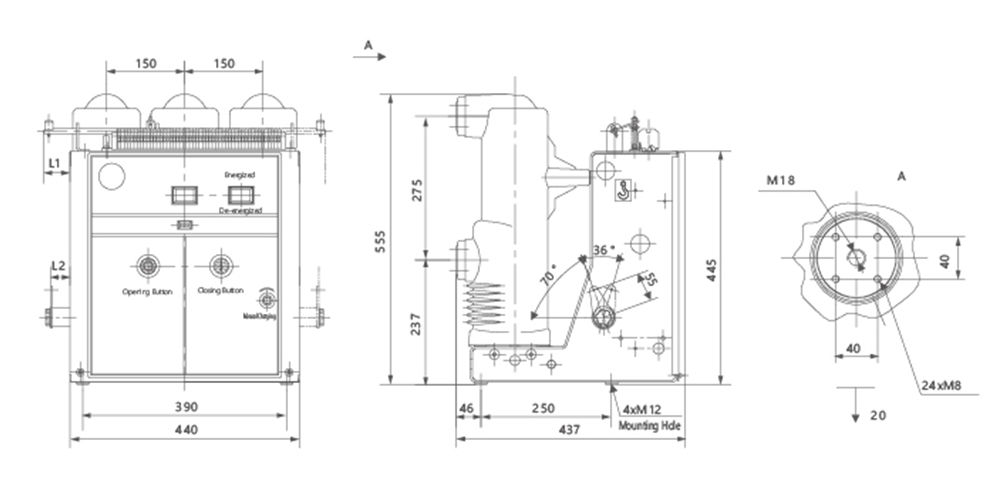

  • Product Size
  • Contact Us

Features:
The withdrawable structure allows the breaker to be racked in and out of the cabinet as a whole, making inspection and replacement simple and quick; combined with reliable mechanical and electrical interlocks, it effectively safeguards operator and equipment safety; the maintenance-free nature of the encapsulated pole significantly reduces long-term operating and maintenance costs.


Applications:
Mainly used within metal-enclosed switchgear, serving as a switching-control and short-circuit protection device for circuits and equipment. Suitable for grid and industrial/mining applications requiring frequent operation or repeated interruption of short-circuit current, making it an ideal component for metal-enclosed switchgear.

Item Unit Parameter
Rated Voltage kV 12
Rated Frequency Hz 50
Rated Current A 630-1250 1250-1600
Rated Short-Circuit Breaking Current kA 20 25 31.5
Rated Short-Circuit Making Current kA 50 63 80
Rated Peak Withstand Current kA 50 63 80
4s Rated Short-Circuit Withstand Current kA 20 25 31.5
Rated
Insulation
Level		 Power Frequency Withstand Voltage (Before and After Rated Breaking) kV 42 (Phase to phase, phase to earth) / 48 (Fracture) RMS
Impulse Withstand Voltage (Before and After Rated Breaking) 75 (Phase to phase, phase to earth) / 85 (Fracture) Peak
Rated Operating Sequence Times O - 0.3s - CO - 180s - CO
Mechanical Life Times 20000
Rated Number of Short-Circuit Breaking Operations V 50
Rated Closing Voltage of Operating Mechanism (DC) V AC/DC 110、220
Rated Opening Voltage of Operating Mechanism (DC) mm AC/DC 110、220
Contact Gap (or Contact Opening Distance) mm 9±1
Overtravel (Contact Spring Compression Length) ms 3.5±0.5
Three-Phase Opening and Closing Bounce Time ms ≤ 2
Contact Closing Bounce Time m/s ≤ 2
